Ball-Rolling Vibration Switch

Ball-Rolling Vibration Switch

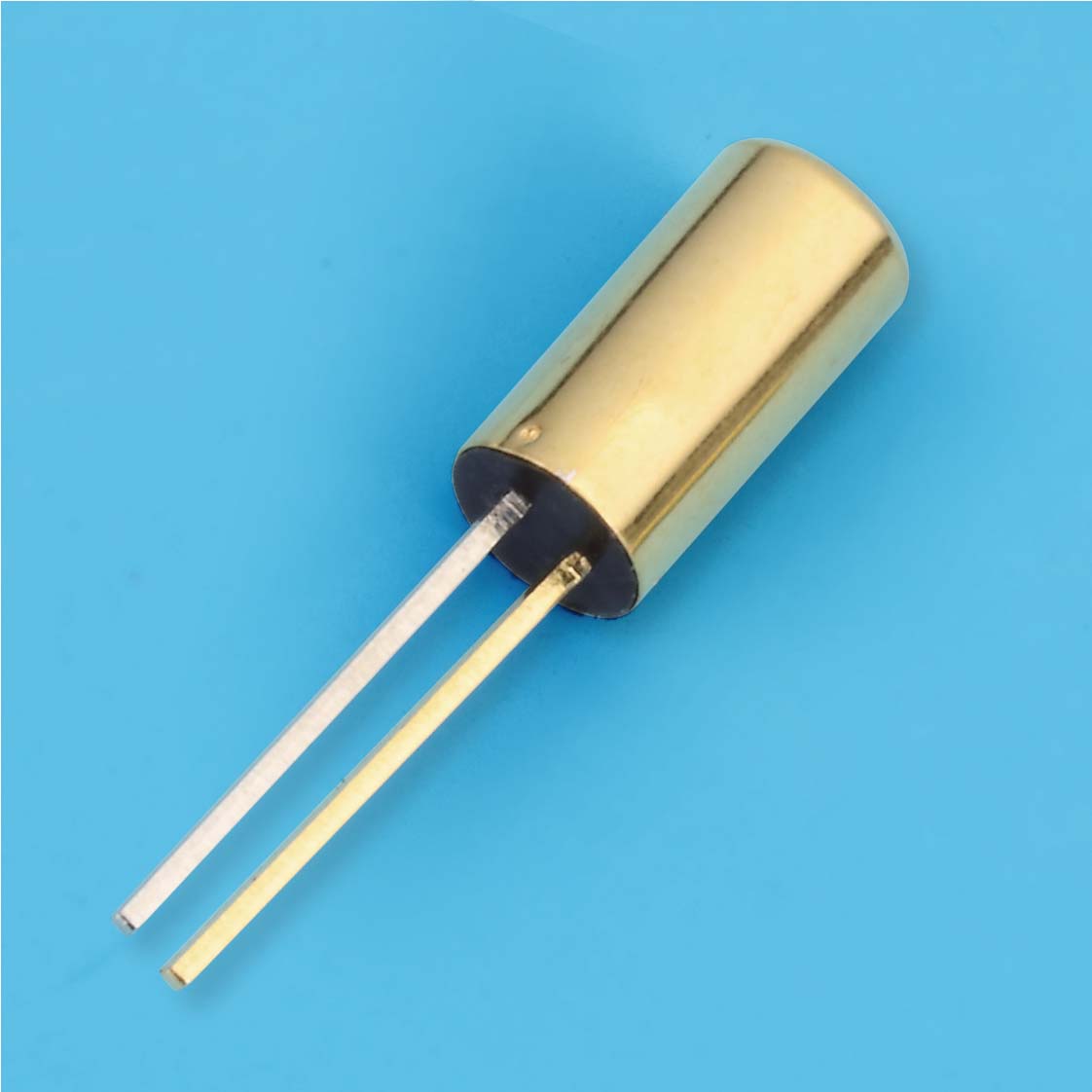

HAT407 Ball-rolling vibration switch

More Details

Product ID: HAT407
HAT407 vibration switches are sensitive to triggering, according to the environmental protection requirement.
Can be activated in small range.Durable.
Can be used in low current and low voltage.
Applications:
Game machines and toys, Security systems, Electrical and electronic products, Personal security alarms, Vibration sensors, Car alarms.
Specifications:
  • Maximun Switch Rating: 24VDC, 6mA.
  • Electrial Life: 100,000 cycles Min.
  • Contact Resistance: 0.5Ω Max. (Measured at 45° tilt )
  • Different Angle: 10° Max.
  • Solder Temperature: Manual soldering 350°C, 3~5 seconds.
  • Operating Temperature: -25°C~ 85°C
Profile
Established in:1992
Business Type:OEM Manufacturer ODM Manufacturer Distributor
Markets: World Wide
Main Products:Ball-rolling switch, vibration switch, and micro switch.
No. of Employee:20
Location:Taiwan
Contact Detail
CEO:Miss Chen
Sales Contact:Sales Miss Chen
Address:No.5, Ln. 267, Shipin Rd., East Dist., Hsinchu City, Taiwan
TEL:886-3-523-2515
FAX:886-3-523-5094
Email:switch@ms74.hinet.net
URL:http://www.cll.com.tw
ZIP:30062
